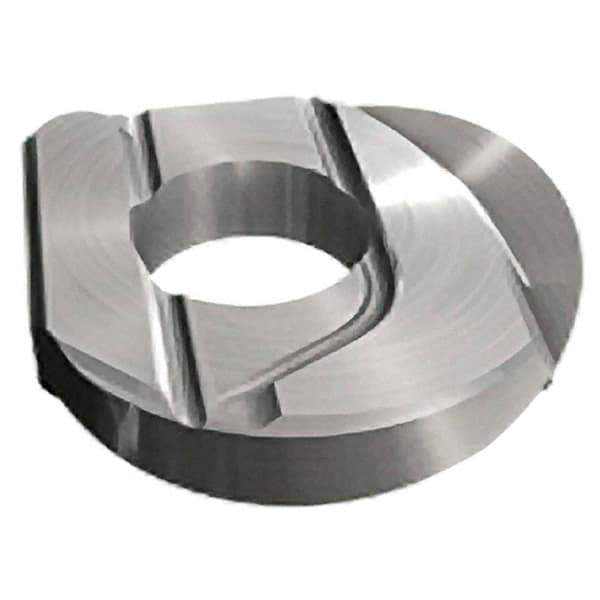

Iscar - HBRD120 QF Grade IC928 Carbide Milling Insert - TiAlN Finish, 2.6mm Thick, 12mm Inscribed Circle, 6mm Corner Radius
Item #: 91169854
Brand: Iscar
Model #: 5604866
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HBR |
| Insert Size | D120 |
| Material | Carbide |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Inscribed Circle (mm) | 12.00 |
| Thickness (mm) | 2.60 |
| Corner Radius (mm) | 6.00 |
| Coating Process | PVD |
| Shape | Ball Nose |
| Chipbreaker | QF |
| Maximum Depth of Cut (mm) | 9.77 |
| ISO Number | HBR D120-QF |
