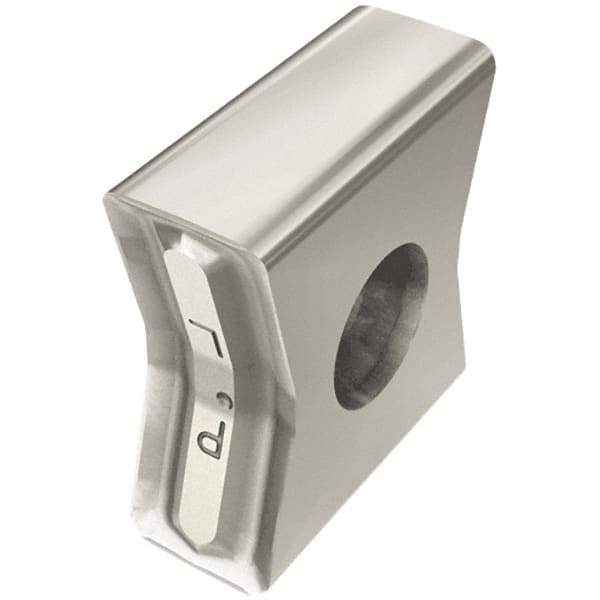

Iscar - LNKX1506 PL Grade IC4100 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 0.5465" Thick, 0.8mm Corner Radius
Item #: 91169425
Brand: Iscar
Model #: 5605430
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNKX |
| Insert Size | 1506 |
| Material | Carbide |
| Manufacturer's Grade | IC4100 |
| Coating | TiCN/Al2O3/TiN |
| Width (Decimal Inch) | 0.2362 |
| Length (Decimal Inch) | 0.5906 |
| Thickness (Decimal Inch) | 0.5465 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Rake Angle | 27 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | PL |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| ISO Number | LNKX 1506PN-N PL |
