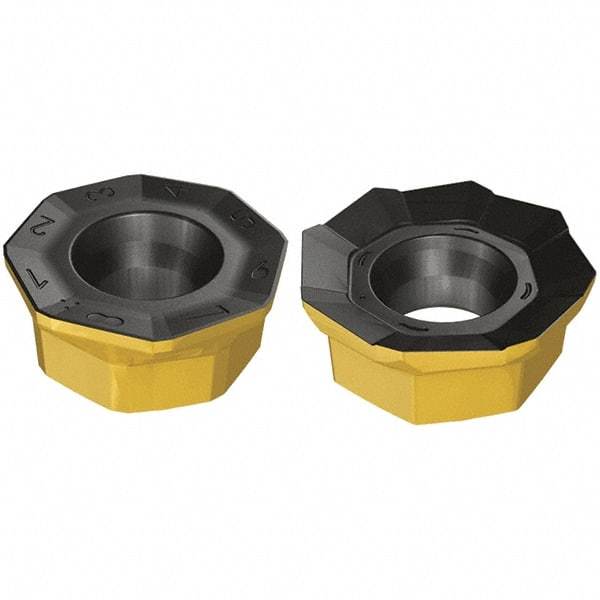

Iscar - OXMT0507 FF Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.2756" Thick, 14.5mm Inscribed Circle
Item #: 91168906
Brand: Iscar
Model #: 5606451
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OXMT |
| Insert Size | 0507 |
| Material | Carbide |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Length (Decimal Inch) | 0.1970 |
| Inscribed Circle (mm) | 14.50 |
| Inscribed Circle (Decimal Inch) | 0.5710 |
| Thickness (Decimal Inch) | 0.2756 |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Right Hand |
| Chipbreaker | FF |
| Maximum Depth of Cut (mm) | 1.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| ISO Number | OXMT 0507R08-FF |
