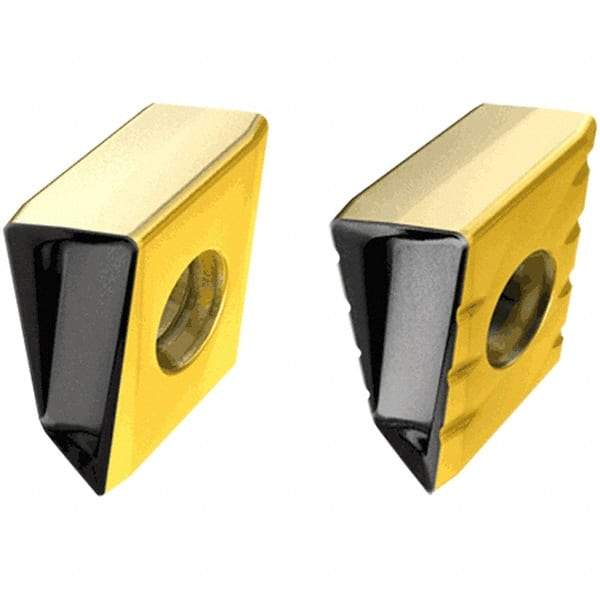

Iscar - T490 LNHT160716 Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.618" Thick, 1.6mm Corner Radius
Item #: 91161802
Brand: Iscar
Model #: 5606620
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNHT |
| Insert Size | 160716 |
| Material | Carbide |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (Decimal Inch) | 0.2756 |
| Length (Decimal Inch) | 0.6713 |
| Thickness (Decimal Inch) | 0.6180 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| ISO Number | T490 LNHT 160716PNR |
