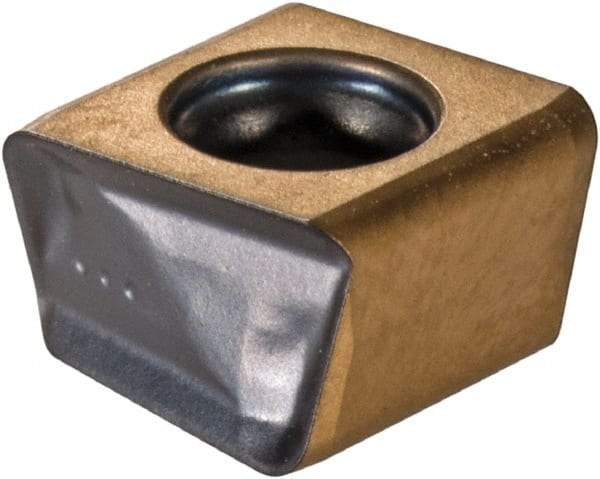

Iscar - HTP LNHT0604 Grade IC830 Carbide Milling Insert - TiAlN/TiN Finish, 0.2665" Thick, 0.8mm Corner Radius
Item #: 91161638
Brand: Iscar
Model #: 5606734
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HTP LNHT |
| Insert Size | 0604 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.1600 |
| Length (Decimal Inch) | 0.2560 |
| Thickness (Decimal Inch) | 0.2665 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 4.50 |
| ISO Number | HTP LNHT 0604ER |
