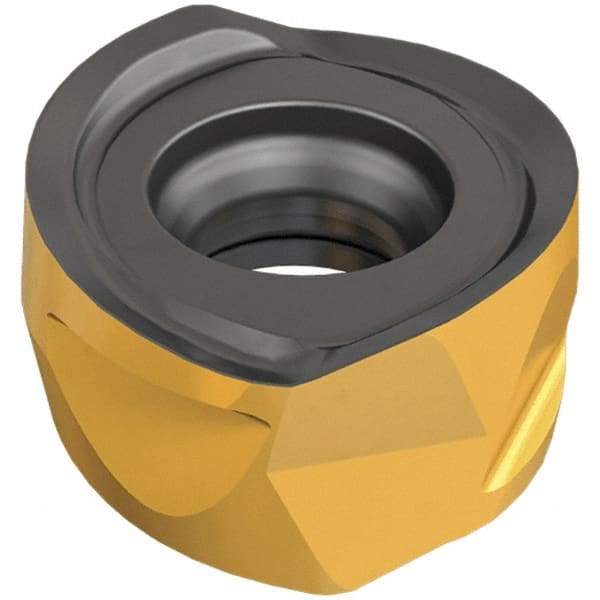

Iscar - H400 RNHU1606 ML Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.307" Thick, 0.5787" Inscribed Circle, 8mm Corner Radius
Item #: 91161349
Brand: Iscar
Model #: 5606933
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H400 RNHU |
| Insert Size | 1606 |
| Material | Carbide |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (Decimal Inch) | 0.5472 |
| Inscribed Circle (Decimal Inch) | 0.5787 |
| Thickness (Decimal Inch) | 0.3070 |
| Corner Radius (Decimal Inch) | 0.3150 |
| Corner Radius (mm) | 8.00 |
| Relief Angle | 0.000 |
| Rake Angle | 6 |
| Coating Process | PVD |
| Included Angle | 360 |
| Shape | Round |
| Chipbreaker | ML |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| ISO Number | H400 RNHU 1606-ML |
