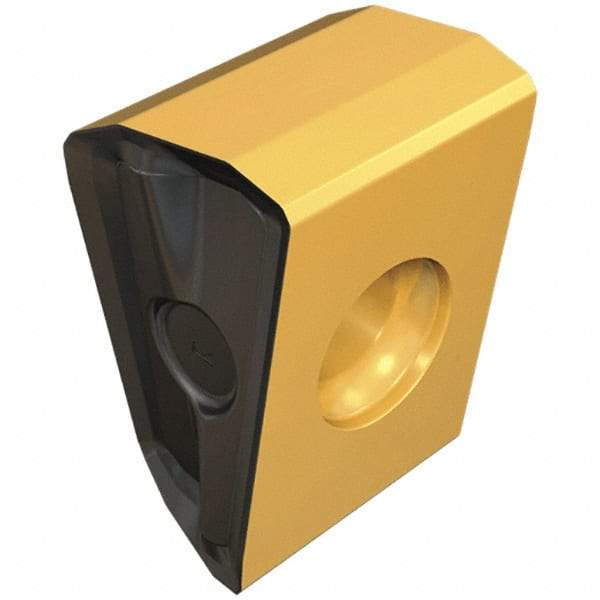

Iscar - T465 LNMT2212 CS Grade IC830 Carbide Milling Insert - TiAlN/TiN Finish, 0.4724" Thick
Item #: 91161323
Brand: Iscar
Model #: 5606939
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T465 LNMT |
| Insert Size | 2212 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.7795 |
| Length (Decimal Inch) | 0.9996 |
| Thickness (Decimal Inch) | 0.4724 |
| Relief Angle | 0.000 |
| Rake Angle | 25 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | CS |
| Maximum Depth of Cut (mm) | 19.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| ISO Number | T465 LNMT 2212-ZNTR-CS |
