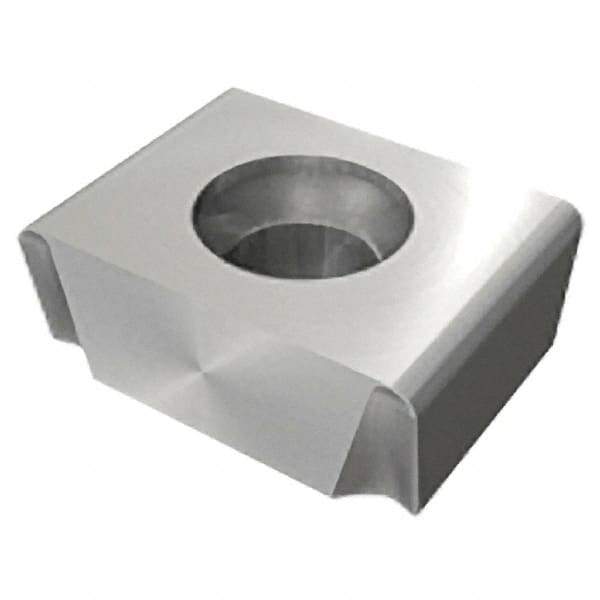

Iscar - LNET125516 TN Grade IC910 Carbide Milling Insert - AlTiN Finish, 0.2165" Thick, 1.6mm Corner Radius
Item #: 91161125
Brand: Iscar
Model #: 5607260
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNET |
| Insert Size | 125516 |
| Material | Carbide |
| Manufacturer's Grade | IC910 |
| Coating | AlTiN |
| Width (Decimal Inch) | 0.3748 |
| Length (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.2165 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | TN |
| ISO Number | LNET 125516-TN |
