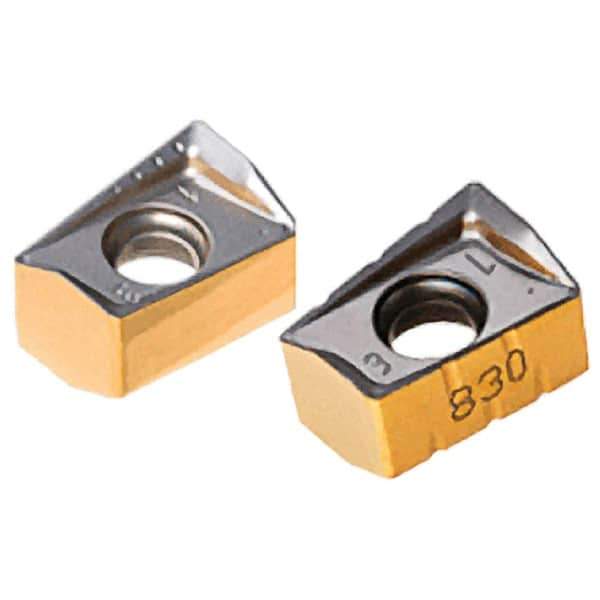

Iscar - H490 ANKX170624 Grade IC830 Carbide Milling Insert - TiAlN/TiN Finish, 0.4134" Thick, 2.4mm Corner Radius
Item #: 91161018
Brand: Iscar
Model #: 5607306
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H490 ANKX |
| Insert Size | 170624 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.4410 |
| Length (Decimal Inch) | 0.6575 |
| Thickness (Decimal Inch) | 0.4134 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Corner Radius (mm) | 2.40 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| ISO Number | H490 ANKX 170624PNTR |
