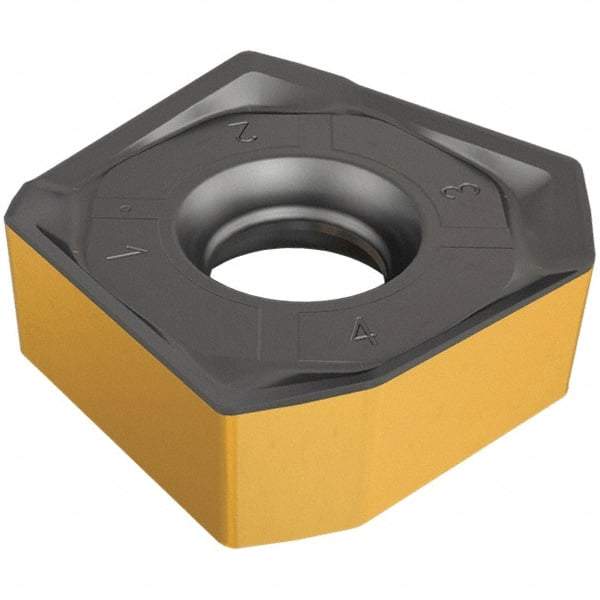

Iscar - S845 SNMU2608 HL Grade IC810 Carbide Milling Insert - AlTiN/TiN Finish, 0.429" Thick, 1.0354" Inscribed Circle, 1.6mm Corner Radius
Item #: 91160846
Brand: Iscar
Model #: 5607778
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | S845 SNMU |
| Insert Size | 2608 |
| Material | Carbide |
| Manufacturer's Grade | IC810 |
| Coating | AlTiN/TiN |
| Inscribed Circle (Decimal Inch) | 1.0354 |
| Thickness (Decimal Inch) | 0.4290 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | HL |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| ISO Number | S845 SNMU 2608ANR-HL |
