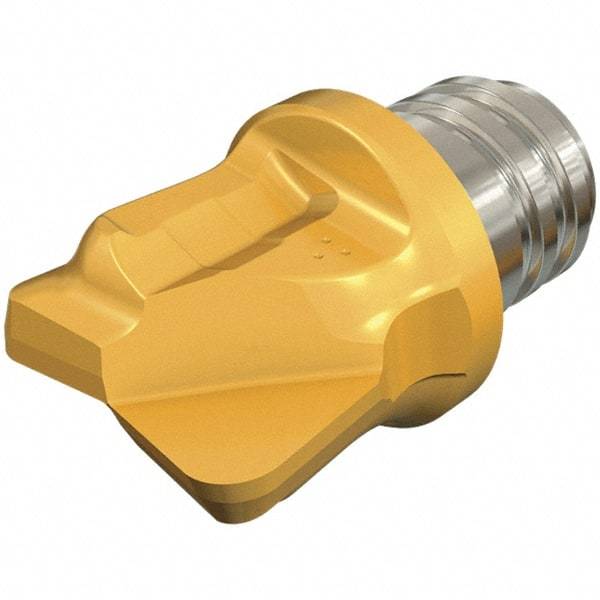

Iscar - MM HT Grade IC903 Carbide Ball Nose Milling Tip Insert - TiAlN Finish, 2 Flutes, 10mm Cutting Diam, 6.9mm Depth of Cut, 11.2mm Extension, 0.118" Cnr Rad
Item #: 91159822
Brand: Iscar
Model #: 5606428
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM HT |
| Milling Tip Type | Ball Nose |
| Material | Carbide |
| Cutting Diameter (mm) | 10.00 |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Manufacturer's Grade | IC903 |
| Depth of Cut (mm) | 6.90 |
| Depth of Cut (Decimal Inch) | 0.2717 |
| Number of Flutes | 2 |
| Coating | TiAlN |
| Milling Tip Full Description | Ball Nose |
| Corner Radius (Decimal Inch) | 0.1180 |
| Coating Process | PVD |
| Extension From Holder (mm) | 11.20 |
| Extension From Holder (Decimal Inch) | 0.4410 |
| Thread Size | T06 |
