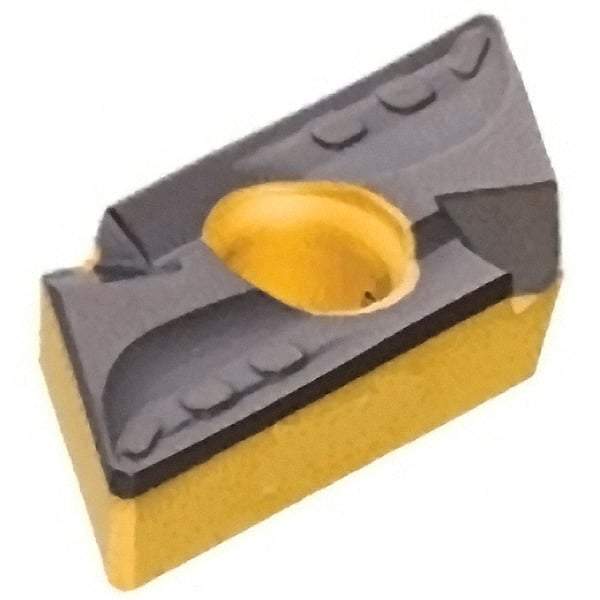

Iscar - KNMX3331, IC8150 Grade Carbide Profiling Insert - TiCN/Al2O3 Finish, 55° Incl Angle, Parallelogram, 4.76mm Thick, 0.5mm Corner Radius, 9.52mm Inscribed Circle
Item #: 91158329
Brand: Iscar
Model #: 5508808
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | KNMX |
| Insert Size | 3331 |
| Manufacturer's Grade | IC8150 |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Relief Angle | 7 |
| Coating | TiCN/Al2O3 |
| Insert Length (mm) | 19.72 |
| Insert Length (Decimal Inch) | 0.7764 |
| Coating Process | CVD |
| Chipbreaker | LP |
| Included Angle | 55 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | Isoturn |
| Insert Holding Method | Screw |
| Shape | Parallelogram |
