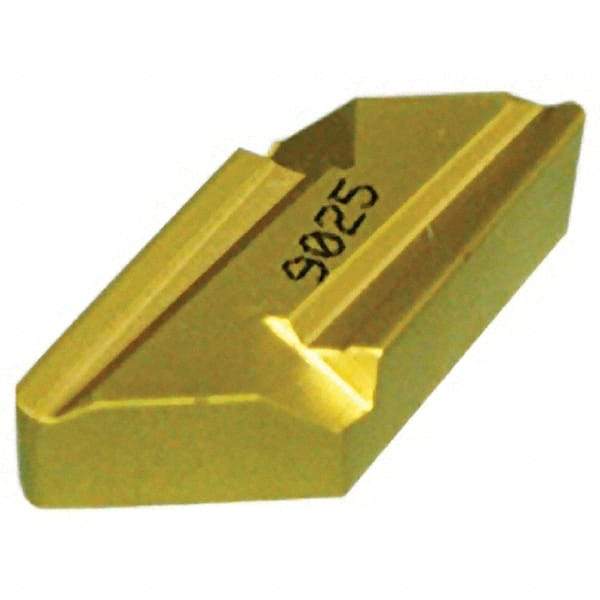

Iscar - KNUX3332, IC9250 Grade Carbide Profiling Insert - TiCn/Al2O3/TiN Finish, 55° Incl Angle, Parallelogram, 0.7764" Side Length, 4.76mm Thick, 1mm Corner Radius, 9.52mm Inscribed Circle
Item #: 91158253
Brand: Iscar
Model #: 5510204
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | KNUX |
| Insert Size | 3332 |
| Manufacturer's Grade | IC9250 |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Relief Angle | 0 |
| Coating | TiCn/Al2O3/TiN |
| Insert Length (mm) | 19.72 |
| Insert Length (Decimal Inch) | 0.7764 |
| Rake | Positive |
| Rake Angle | 12 |
| Coating Process | CVD |
| Side Length (Decimal Inch) | 0.7764 |
| Side Length (mm) | 19.72 |
| Chipbreaker | 12 |
| Included Angle | 55 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Insert Holding Method | Clamp |
| Shape | Parallelogram |
