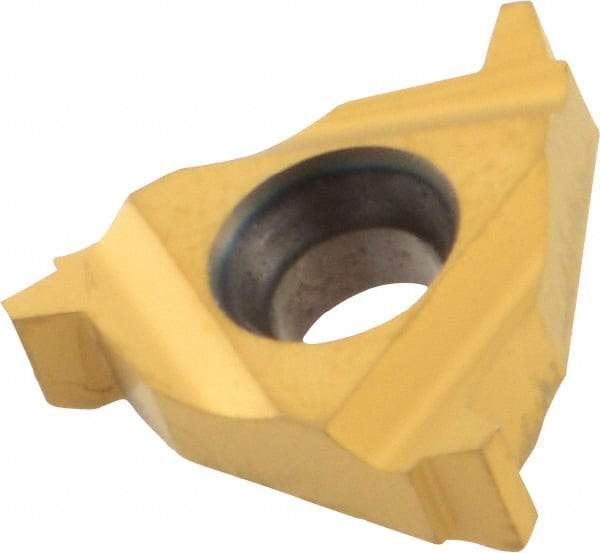

Iscar - 16IR Internal Right Hand 10 Acme Laydown Threading Insert - Grade IC250, TiCN/TiN Coated Carbide, 9.53mm Inscribed Circle
Item #: 91147637
Brand: Iscar
Model #: 5901718
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16IR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | Acme |
| Manufacturer's Grade | IC250 |
| Threads Per Inch | 10 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1430 |
| Coating | TiCN/TiN |
| Coating Process | PVD |
