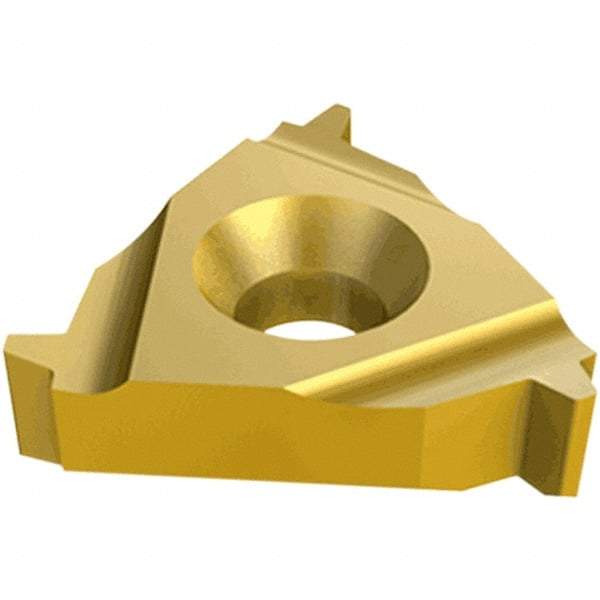

Iscar - 22IL Internal Left Hand 5 Stub Acme Laydown Threading Insert - Grade IC50M, Uncoated Coated Carbide, 12.7mm Inscribed Circle
Item #: 91147579
Brand: Iscar
Model #: 5900115
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 22IL |
| Insert Hand | Left Hand |
| Thread Type | Internal |
| Thread Standard | Stub Acme |
| Manufacturer's Grade | IC50M |
| Threads Per Inch | 5 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1880 |
| Coating | Uncoated |
