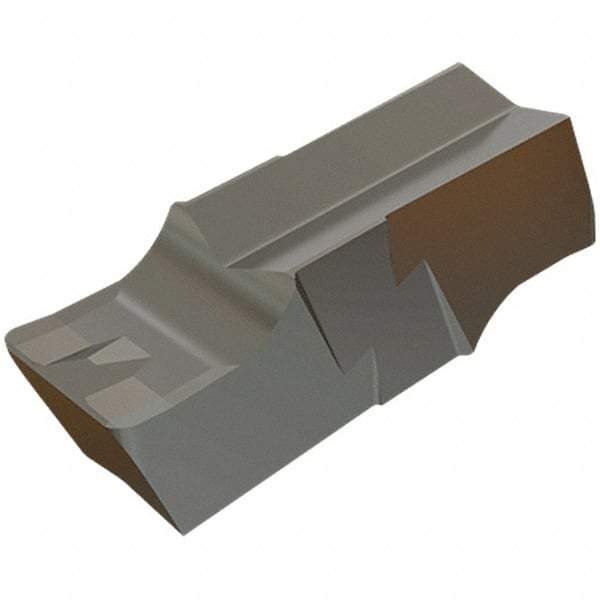

Iscar - 330010GIPI Grade IC808, 3.3mm Cutting Width Carbide Grooving Insert - Neutral, 0.1mm Corner Radius, TiAlN Finish
Item #: 91145409
Brand: Iscar
Model #: 6405113
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPI |
| Insert Size | 330010 |
| Material | Carbide |
| Cutting Width (mm) | 3.30 |
| Cutting Width (Decimal Inch) | 0.1300 |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Relief Angle | 8 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Recessing |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Coating Process | PVD |
| Overall Length (mm) | 15.70 |
| Overall Length (Decimal Inch) | 0.6180 |
| Series | Cut Grip |
