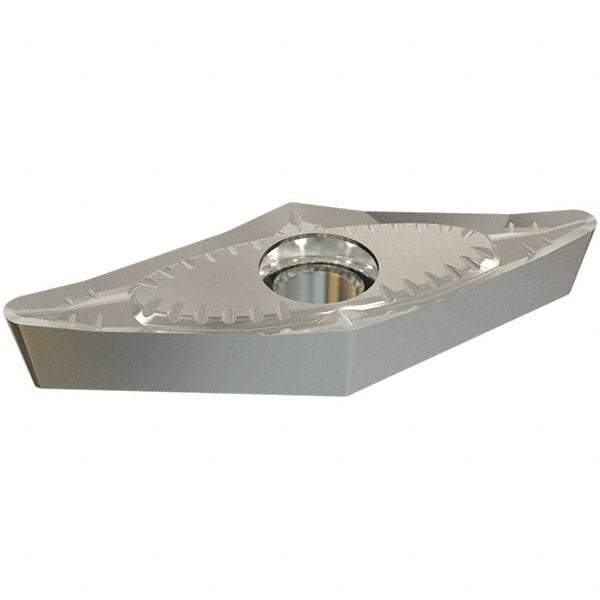

Iscar - VCGT220512 AF Grade IC20 Carbide Turning Insert - Uncoated, 35° Diamond, 1/2" Inscr Circle, 7/32" Thick, 3/64" Corner Radius
Item #: 91140830
Brand: Iscar
Model #: 5540038
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VCGT |
| Insert Size | 220512 |
| Material | Carbide |
| Length (mm) | 22.10 |
| Length (Decimal Inch) | 0.8700 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 7/32 |
| Thickness (Decimal Inch) | 0.2190 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Chip Breaker | AF |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Rake | Positive |
| Relief Angle | 7 |
| Included Angle | 35 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Insert Holding Method | Screw |
| Shape | Diamond |
