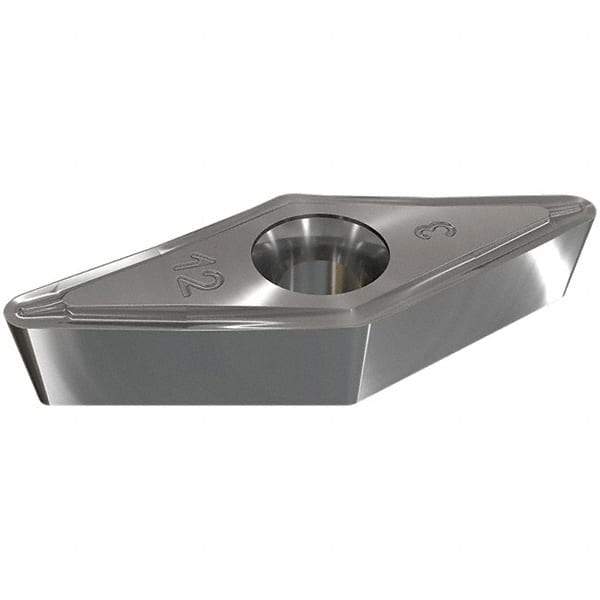

Iscar - VCMT333 SM Grade IC807 Carbide Turning Insert - TiAlN Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 91139717
Brand: Iscar
Model #: 5550500
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VCMT |
| Insert Size | 333 |
| Material | Carbide |
| Length (mm) | 16.60 |
| Length (Decimal Inch) | 0.6535 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | IC807 |
| Coating | TiAlN |
| Material Grade | Submicron |
| Chip Breaker | SM |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 35 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Insert Holding Method | Screw |
| Shape | Diamond |
