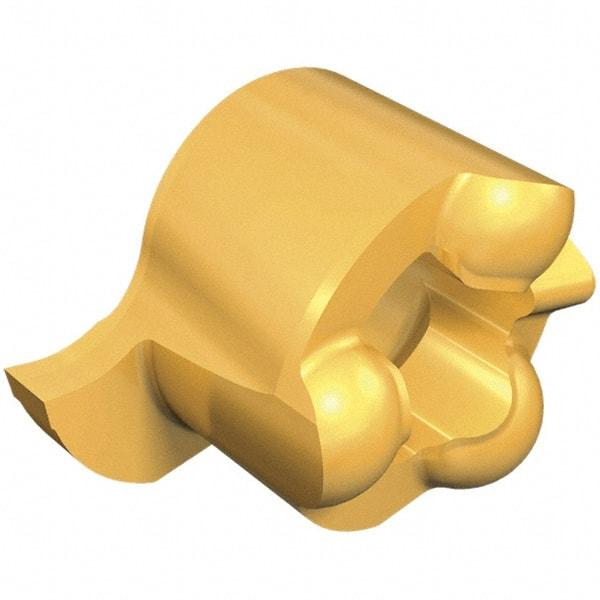

Iscar - 8350020GIQR Grade IC528, 3.5mm Cutting Width Carbide Grooving Insert - 1.4mm Max Depth of Cut, Right Hand, 0.2mm Corner Radius, TiCN/TiN Finish
Item #: 91137992
Brand: Iscar
Model #: 6403921
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIQR |
| Insert Size | 8350020 |
| Material | Carbide |
| Cutting Width (mm) | 3.50 |
| Cutting Width (Decimal Inch) | 0.1378 |
| Maximum Depth of Cut (mm) | 1.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.0550 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Right Hand |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Overall Length (mm) | 7.78 |
| Series | ChamGroove |
