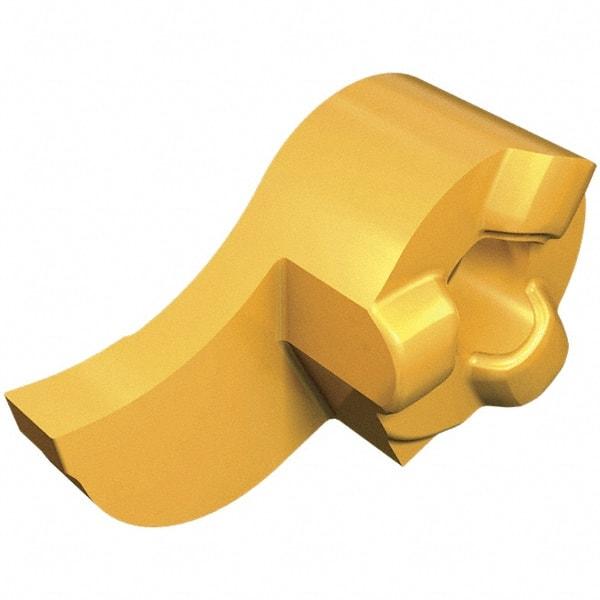

Iscar - 1115300020GIQL Grade IC528, 3mm Cutting Width Carbide Grooving Insert - 0.75mm Max Depth of Cut, Left Hand, 0.2mm Corner Radius, TiCN/TiN Finish
Item #: 91137273
Brand: Iscar
Model #: 6404416
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIQL |
| Insert Size | 1115300020 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 0.75 |
| Maximum Depth of Cut (Decimal Inch) | 0.0295 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Left Hand |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Overall Length (mm) | 14.60 |
| Overall Length (Decimal Inch) | 0.5748 |
| Series | ChamGroove |
