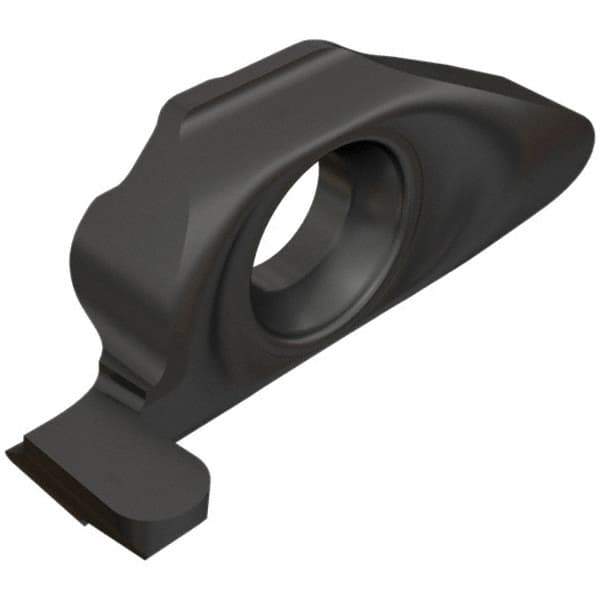

Iscar - 8200100MIGR Grade IC908, 2mm Cutting Width Carbide Grooving Insert - 0.5mm Max Depth of Cut, Neutral, 1mm Corner Radius, TiAlN Finish
Item #: 91136549
Brand: Iscar
Model #: 6405195
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MIGR |
| Insert Size | 8200100 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 0.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Multi-Use Tool | No |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Coating Process | PVD |
| Series | MinCut |
