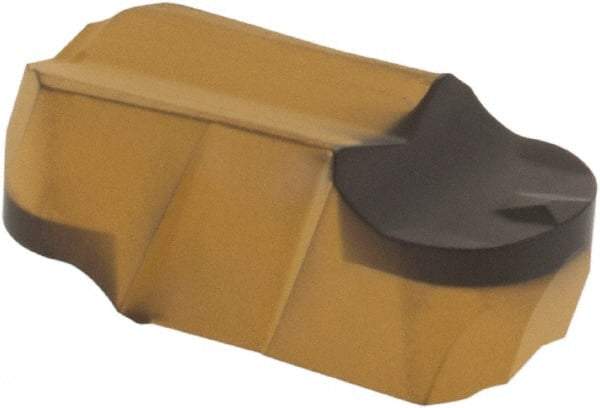

Iscar - 635318GIPI Grade IC8250, 6.35mm Cutting Width Carbide Grooving Insert - Neutral, 3.18mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 91136382
Brand: Iscar
Model #: 6405259
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPI |
| Insert Size | 635318 |
| Material | Carbide |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Neutral |
| Relief Angle | 8 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Recessing |
| Corner Radius (mm) | 3.18 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Coating Process | PVD |
| Overall Length (mm) | 15.70 |
| Overall Length (Decimal Inch) | 0.6180 |
| Series | Cut Grip |
