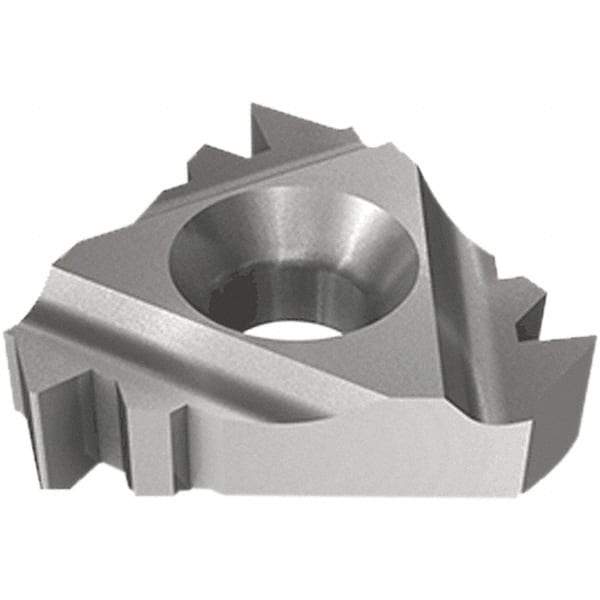

Iscar - 11IR Internal Right Hand 36 Whitworth Laydown Threading Insert - Grade IC08, Uncoated Coated Carbide, 6.35mm Inscribed Circle
Item #: 91128413
Brand: Iscar
Model #: 5902418
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 11IR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | Whitworth |
| Manufacturer's Grade | IC08 |
| Threads Per Inch | 36 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.1260 |
| Coating | Uncoated |
| Corner Radius (mm) | 0.07 |
| Corner Radius (Decimal Inch) | 0.0028 |
