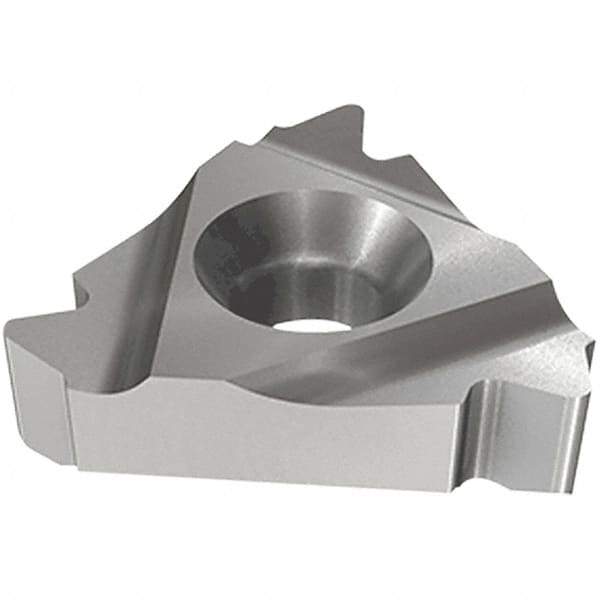

Iscar - 22ER External Right Hand 6 API Extreme Line Casing Laydown Threading Insert - Grade IC250, TiCN/TiN Coated Carbide, 12.7mm Inscribed Circle
Item #: 91127423
Brand: Iscar
Model #: 5903321
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 22ER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | API Extreme Line Casing |
| Manufacturer's Grade | IC250 |
| Threads Per Inch | 6 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1880 |
| Coating | TiCN/TiN |
| Coating Process | PVD |
