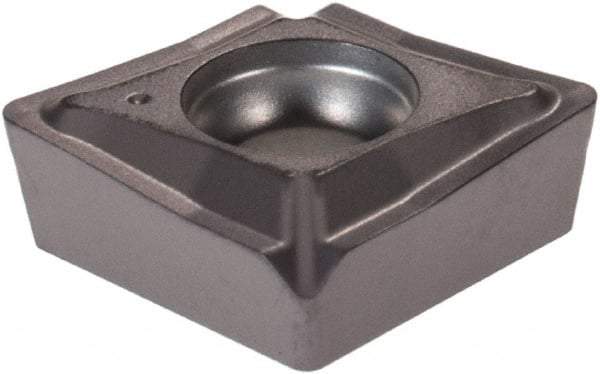

Iscar - XCMT 10T308, 83.5° IC908 Grade Drill Chamfer Insert - MF Chipbreaker, TiAlN Coated, Series Multifunction Tools
Item #: 91124891
Brand: Iscar
Model #: 5508048
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multifunction Tools |
| Material | Carbide |
| Insert Style | XCMT |
| Insert Size | 10T308 |
| Chamfer Angle | 84 |
| Manufacturer's Grade | IC908 |
| Chipbreaker | MF |
| Inscribed Circle (mm) | 10.50 |
| Inscribed Circle (Decimal Inch) | 0.4134 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating | TiAlN |
| Coating Process | PVD |
| Length (mm) | 10.50 |
| Length (Decimal Inch) | 0.4134 |
