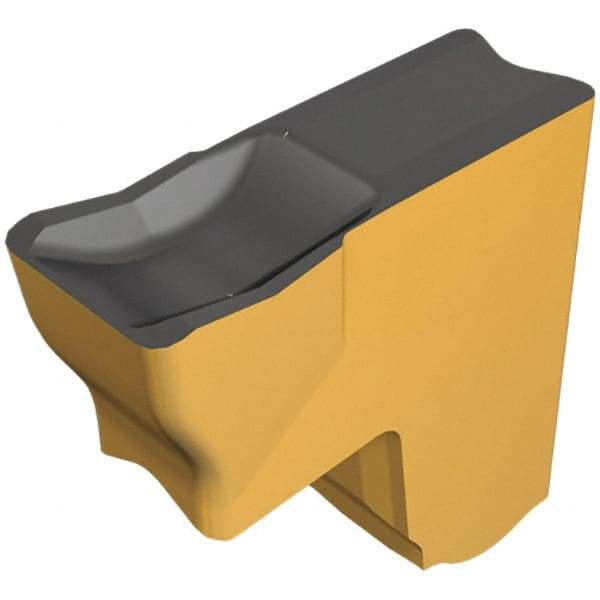

Iscar - TAG W IC830 Grade, 0.374" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0197" Cnr Rad, TiAlN Coated, Single End
Item #: 91124297
Brand: Iscar
Model #: 6004490
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TAG |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 9.50 |
| Cutting Width (Decimal Inch) | 0.3740 |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN |
| Series | Tang-Grip |
| Relief Angle | 7 |
| Chipbreaker | W |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Insert Holding Method | Clamp |
