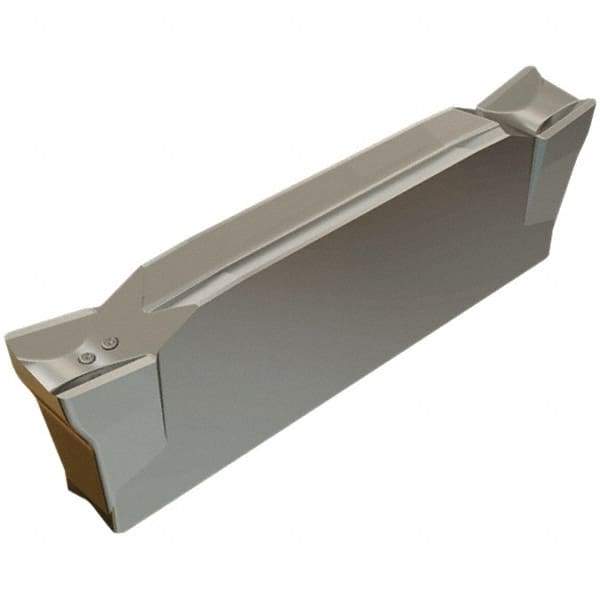

Iscar - DGLC C IC808 Grade, 0.1575" Cutting Width, Carbide Cutoff Insert - 4° Left Hand Lead Angle, 0.012" Cnr Rad, TiAlN Coated, Double End
Item #: 91119560
Brand: Iscar
Model #: 6011394
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGLC |
| Lead Angle Direction | Left Hand |
| Lead Angle | 4 |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Series | Do-Grip |
| Chipbreaker | C |
| Coating Process | PVD |
| Overall Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 0.7480 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Corner Radius (mm) | 0.30 |
| Insert Holding Method | Clamp |
