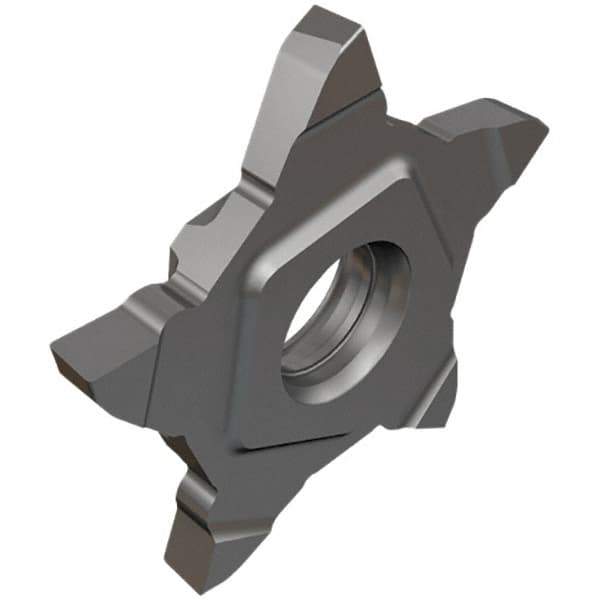

Iscar - PENTA NF IC908 Grade, 0.062" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.031" Cnr Rad, TiAlN Coated, Other End
Item #: 91119404
Brand: Iscar
Model #: 6091555
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | PENTA |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 1.57 |
| Cutting Width (Decimal Inch) | 0.0620 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Series | PentaCut |
| Chipbreaker | NF |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Insert Holding Method | Screw |
