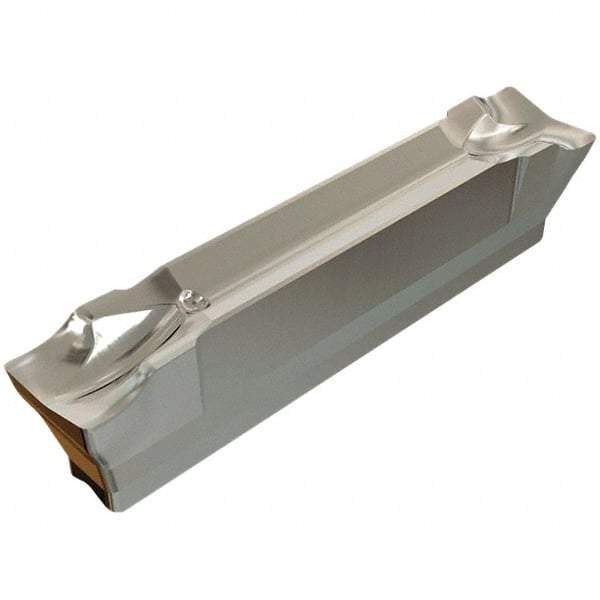

Iscar - HGR3002 J IC354 Grade, 0.118" Cutting Width, Carbide Cutoff Insert - 6° Right Hand Lead Angle, 0.008" Cnr Rad, TiN/TiCN Coated, Double End
Item #: 91119313
Brand: Iscar
Model #: 6090879
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | HGR |
| Insert Size | 3002 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC354 |
| Coating | TiN/TiCN |
| Series | Do-Grip |
| Relief Angle | 7 |
| Chipbreaker | J |
| Coating Process | PVD |
| Overall Length (mm) | 15.70 |
| Overall Length (Decimal Inch) | 0.6180 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 2 |
