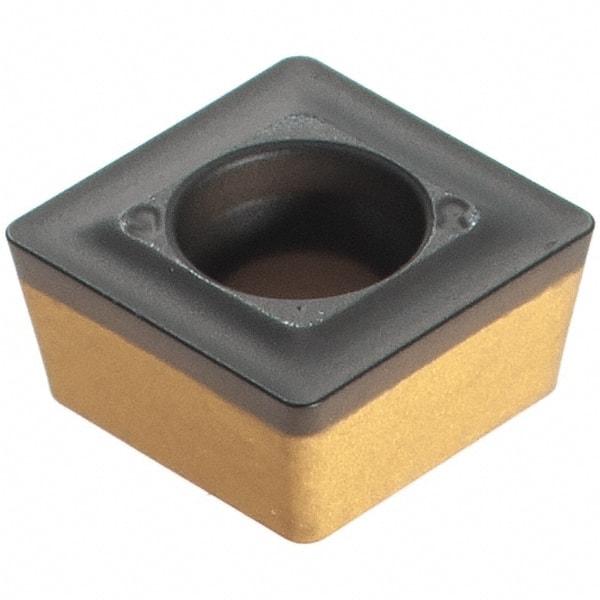

Iscar - SOMX060304 DT Grade IC8080 Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Square, 6.2mm Inscribed Circle
Item #: 91112920
Brand: Iscar
Model #: 5507923
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SOMX |
| Insert Size | 060304 |
| Material | Carbide |
| Manufacturer's Grade | IC8080 |
| Inscribed Circle (mm) | 6.20 |
| Inscribed Circle (Decimal Inch) | 0.2440 |
| Thickness (mm) | 3.20 |
| Thickness (Decimal Inch) | 0.1260 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Square |
| Included Angle | 90 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Chipbreaker | DT |
