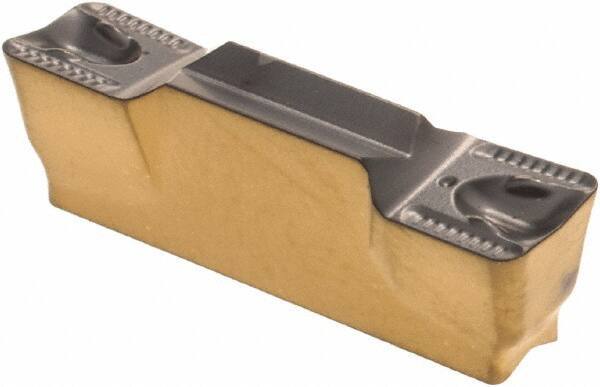

Iscar - 476080GRIP Y Grade IC808, 4.76mm Cutting Width Carbide Grooving Insert - 2.8mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, TiAlN Finish
Item #: 91112755
Brand: Iscar
Model #: 6200325
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GRIP |
| Insert Size | 476080 |
| Material | Carbide |
| Cutting Width (mm) | 4.76 |
| Cutting Width (Decimal Inch) | 0.1874 |
| Maximum Depth of Cut (mm) | 2.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1102 |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Chipbreaker | Y |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | PVD |
| Overall Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 0.7480 |
| Series | Heli-Grip |
