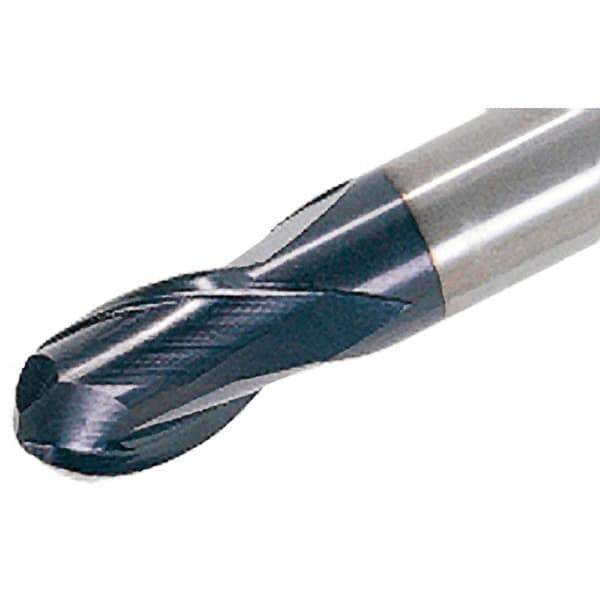

Iscar - 22mm Diam, 22mm LOC, 2 Flute Powdered Metal Ball End Mill - TiN Finish, Single End, 88mm OAL, 20mm Shank Diam, Spiral Flute
Item #: 91101824
Brand: Iscar
Model #: 3121067
Exact Tooling IR#: 04
Features and Benefits
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 22.00 |
| Mill Diameter (Decimal Inch) | 0.8661 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 22.00 |
| Length of Cut (Decimal Inch) | 0.8661 |
| Material | Powdered Metal |
| Overall Length (mm) | 88.00 |
| Shank Diameter (mm) | 20.00 |
| Finish/Coating | TiN |
| Single or Double End | Single |
| Helix Angle | 30.00 |
| Extended Reach | No |
| Helix Style | Medium |
| Mill Diameter Tolerance (mm) | -0.040 to 0.073 |
| Flute Type | Spiral |
| Undercutting | No |
| Shank Diameter Tolerance (mm) | 0.000/-0.013 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
