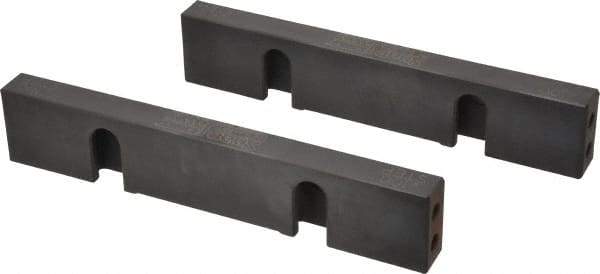

Snap Jaws - 8" Wide x 1.53" High x 0.73" Thick, Step Vise Jaw - Steel, Fixed Jaw, Compatible with 6" Vises
Item #: 90215211
Brand: Snap Jaws
Model #: 6ESJ100
Exact Tooling IR#: 04
Features and Benefits
Step jaws are single step ground for a specific depth. They perform like parallels which are used to elevate the workpiece above the vise jaws to clamp parts.
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
Fixed or stationary jaw bodies are non-movable and remain in a fixed position on the vise bed. Jaw plates are mounted to the jaw body.
| Product Specifications | |
|---|---|
| Jaw Shape | Step |
| Jaw Width (Inch) | 8 |
| Jaw Width (Decimal Inch) | 8.0000 |
| Jaw Height (Decimal Inch) | 1.5300 |
| Jaw Thickness (Decimal Inch) | 0.7300 |
| Material | Steel |
| Jaw Movement Type | Fixed |
| Vise Compatibility | 6" Vises |
| Step Height (Decimal Inch) | 0.1000 |
| Step Width (Decimal Inch) | 0.1000 |
| Attachment Method | Bolt-On |
| Distance Between Mount Hole Centers (Decimal Inch) | 3.8750 |
| Model Number | 6ESJ |
