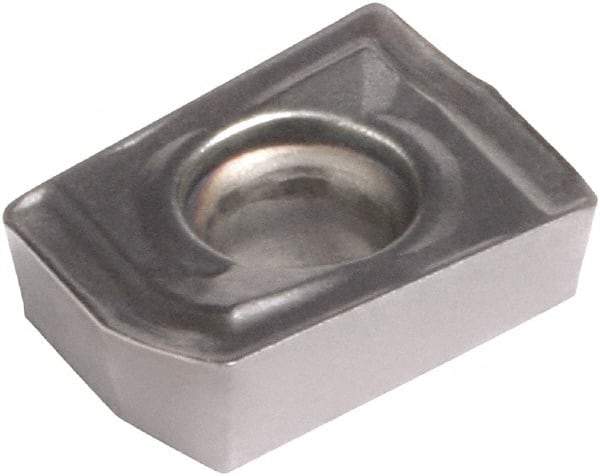

Kennametal - DFR020204 GD Grade KCU40 Carbide Indexable Drill Insert - TiN/TiAlN Finish, 6mm Inscribed Circle
Item #: 89480529
Brand: Kennametal
Model #: 5065554
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiN/TiAlN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Insert Style | DFR |
| Insert Size | 020204 |
| Material | Carbide |
| Manufacturer's Grade | KCU40 |
| Inscribed Circle (mm) | 6.00 |
| Inscribed Circle (Decimal Inch) | 0.2362 |
| Thickness (mm) | 2.79 |
| Thickness (Decimal Inch) | 0.1098 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Width (Decimal Inch) | 0.1929 |
| Width (mm) | 4.90 |
| Length (mm) | 7.12 |
| Length (Decimal Inch) | 0.2803 |
| Hole Diameter (mm) | 2.30 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Coating | TiN/TiAlN |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chipbreaker | GD |
