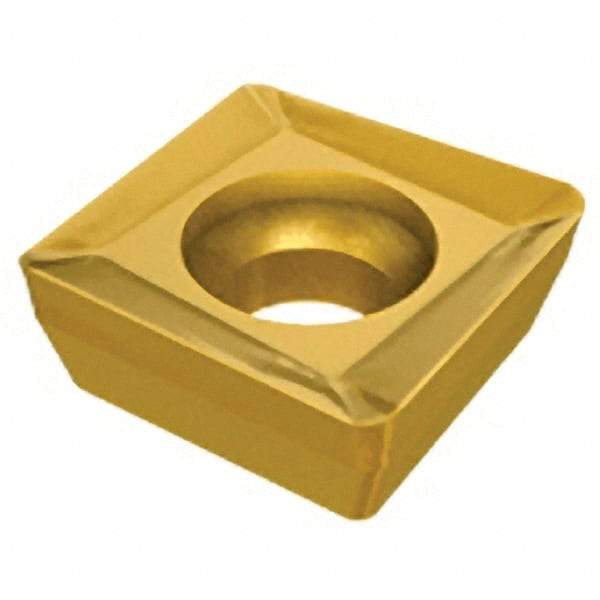

Iscar - SPMT100408 HQM Grade IC330 Carbide Milling Insert - TiCN/TiN Finish, 0.1665" Thick, 0.4016" Inscribed Circle, 0.8mm Corner Radius
Item #: 88516091
Brand: Iscar
Model #: 5606583
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMT |
| Insert Size | 100408 |
| Material | Carbide |
| Manufacturer's Grade | IC330 |
| Coating | TiCN/TiN |
| Inscribed Circle (Decimal Inch) | 0.4016 |
| Thickness (Decimal Inch) | 0.1665 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 11.000 |
| Rake Angle | 17 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | HQM |
| ISO Number | SPMT 100408TR-HQ-M |
