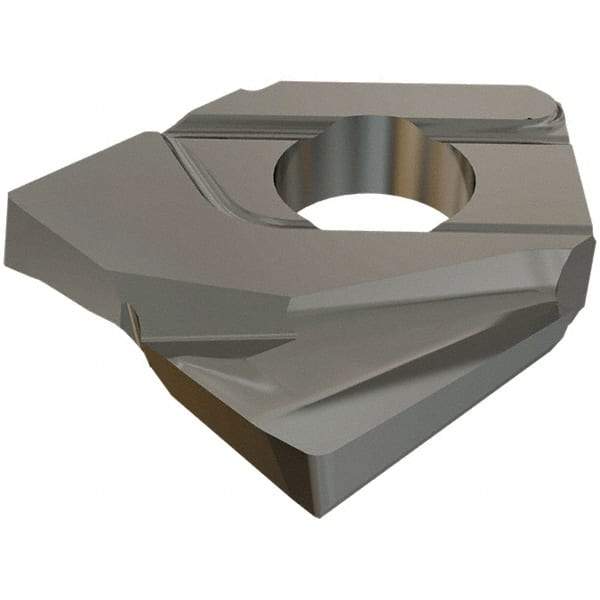

Iscar - HCCD160-R0.5 QF Grade IC908 Carbide Milling Insert - TiAlN Finish, 0.1327" Thick, 0.5mm Corner Radius
Item #: 88399498
Brand: Iscar
Model #: 5604822
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HCC |
| Insert Size | D160-R0.5 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.6299 |
| Thickness (Decimal Inch) | 0.1327 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Coating Process | PVD |
| Shape | Ball Nose |
| Insert Hand | Right Hand |
| Chipbreaker | QF |
| Maximum Depth of Cut (mm) | 10.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.4055 |
| ISO Number | HCC D160-R0.5-QF |
