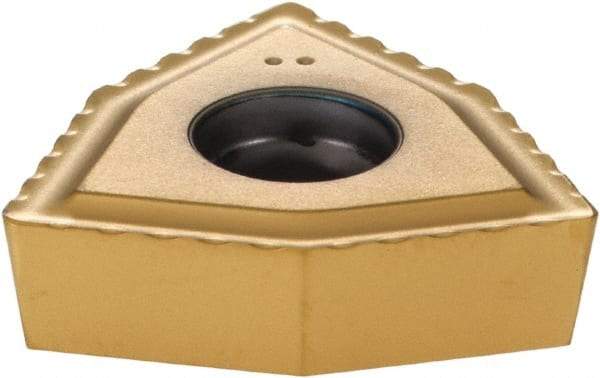

Komet - WOEX120608 Positive Molded Grade BK84 Carbide Indexable Drill Insert - TiCN/TiN Finish, Trigon, 0.693" Inscribed Circle
Item #: 88239132
Brand: Komet
Model #: W2958130088425
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Insert Style | WOEX |
| Insert Size | 120608 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Manufacturer's Grade | BK84 |
| Inscribed Circle (Decimal Inch) | 0.6930 |
| Thickness (Decimal Inch) | 0.2360 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Shape | Trigon |
| Relief Angle | 8 |
| Included Angle | 84 |
| Coating | TiCN/TiN |
| Coating Process | PVD |
| Chipbreaker | Positive Molded |
