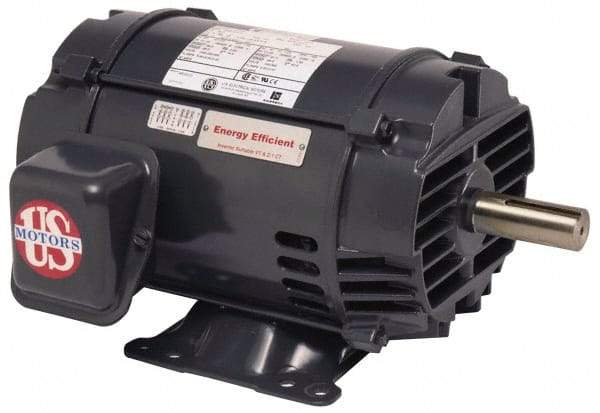

US Motors - 300 hp, ODP Enclosure, No Thermal Protection, 1,185 RPM, 460 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 449 Frame, Rigid Mount, 1 Speed, Ball Bearings, 350 Full Load Amps, F Class Insulation, CCW Lead End - USA Tool & Supply

US Motors - 300 hp, ODP Enclosure, No Thermal Protection, 1,185 RPM, 460 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 449 Frame, Rigid Mount, 1 Speed, Ball Bearings, 350 Full Load Amps, F Class Insulation, CCW Lead End


Item #: 87962650
Brand: US Motors
Model #: D300E3F
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Energy Efficient
Type of Enclosure ODP
Horsepower 300
Thermal Protection Rating None
Name Plate RPMs 1185
Voltage 460
Frequency Hz 60
Frame Size 449
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications General Purpose
Full Load Amperage 350
Insulation Class F
Frame Material Steel
Overall Length (Decimal Inch) 48.2500
Full Load Efficiency Rating 95
Service Factor Rating 1.15
Motor Rotation CCW Lead End
PSC Code 6105
$27,211.02

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
