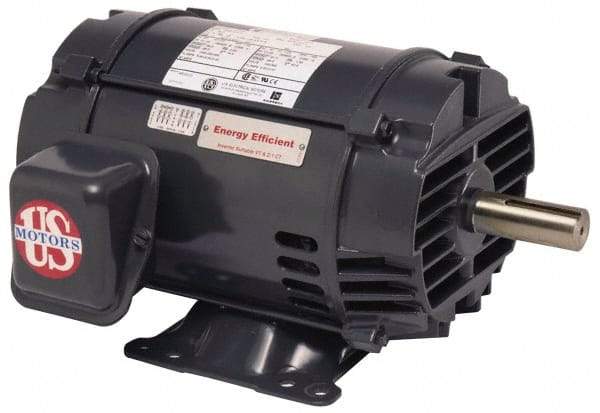

US Motors - 20 hp, ODP Enclosure, No Thermal Protection, 1,180 RPM, 575 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 286 Frame, Rigid Mount, 1 Speed, Ball Bearings, 19.9 Full Load Amps, F Class Insulation, CCW Lead End
Item #: 87961249
Brand: US Motors
Model #: D20E3G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | ODP |
| Horsepower | 20 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1180 |
| Voltage | 575 |
| Frequency Hz | 60 |
| Frame Size | 286 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 19.9 |
| Insulation Class | F |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 24.8800 |
| Full Load Efficiency Rating | 91 |
| Service Factor Rating | 1.15 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
