US Motors - 3/4 hp, TEAO Enclosure, Auto Thermal Protection, 1,075 RPM, 460 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Band/Hub Mount, 1 Speed, Ball Bearings, 2.7 Full Load Amps, B Class Insulation, CCW Lead End Rev - USA Tool & Supply

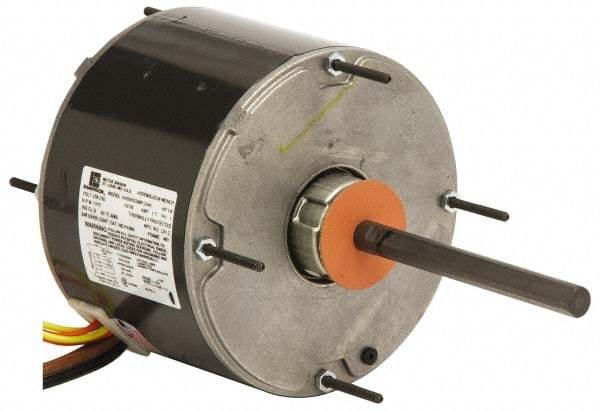

US Motors - 3/4 hp, TEAO Enclosure, Auto Thermal Protection, 1,075 RPM, 460 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Band/Hub Mount, 1 Speed, Ball Bearings, 2.7 Full Load Amps, B Class Insulation, CCW Lead End Rev


Item #: 87957387
Brand: US Motors
Model #: 8233
Exact Tooling IR#: 04

Product Specifications
Type of Enclosure TEAO
Horsepower 3/4
Thermal Protection Rating Auto
Name Plate RPMs 1075
Voltage 460
Frequency Hz 60
Frame Size 48
Mount Type Band/Hub
Number of Speeds 1
Bearing Type Ball
Full Load Amperage 2.7
Insulation Class B
Shaft Diameter x Length (Inch) 1/2 x 5
Full Load Efficiency Rating 67.30
Motor Run Capacitor Micro Farid 12.50
Motor Run Capacitor Volts 0
Service Factor Rating 1.00
Motor Rotation CCW Lead End Rev
PSC Code 6105
$480.65

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
