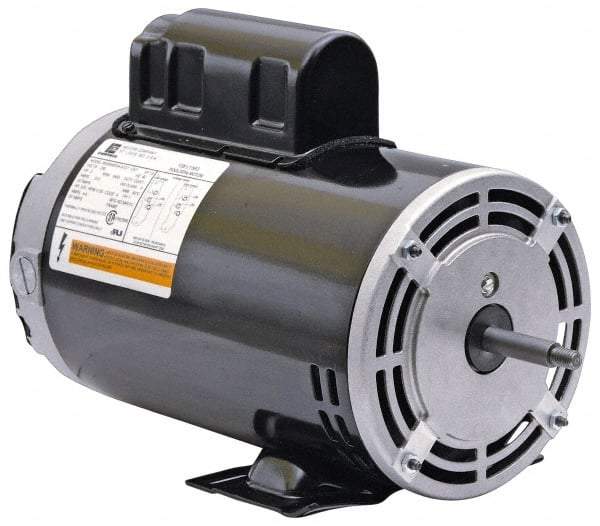

US Motors - 3/4 hp, ODP Enclosure, Auto Thermal Protection, 3,450 RPM, 115 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Thru Bolt with Base Mount, 1 Speed, Ball/SAB Bearings, 10.0 Full Load Amps, B Class Insulation, CCW Drive End
Item #: 87956827
Brand: US Motors
Model #: AGL75FL1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 3/4 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 3450 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Thru Bolt w/Base |
| Number of Speeds | 1 |
| Bearing Type | Ball/SAB |
| Full Load Amperage | 10.0 |
| Insulation Class | B |
| Full Load Efficiency Rating | 63.20 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CCW Drive End |
| PSC Code | 6105 |
