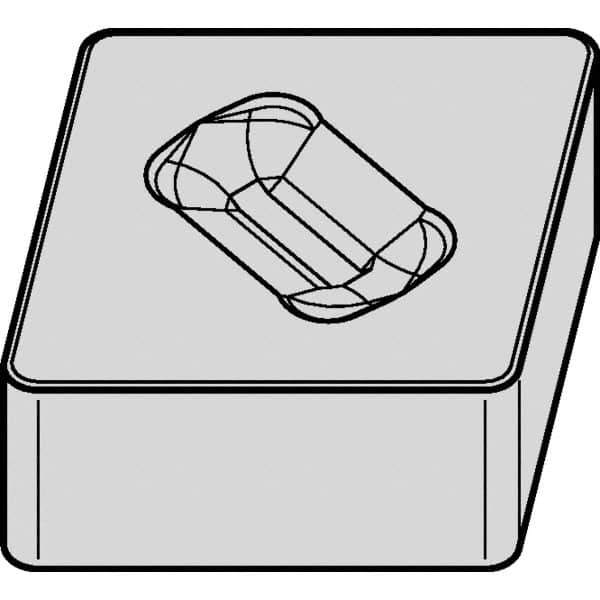

Kennametal - CNGX554 T0820 Grade KYK25 Ceramic Turning Insert - 80° Diamond, 5/8" Inscr Circle, 5/16" Thick, 1/16" Corner Radius
Item #: 87949657
Brand: Kennametal
Model #: 3856517
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | CNGX |
| Insert Size | 554 |
| Material | Ceramic |
| Length (mm) | 16.12 |
| Length (Decimal Inch) | 0.6346 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | KYK25 |
| Material Grade | C3 |
| Chip Breaker | T0820 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 80 |
| Series | KENDEX |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Clamp |
| Shape | Diamond |
