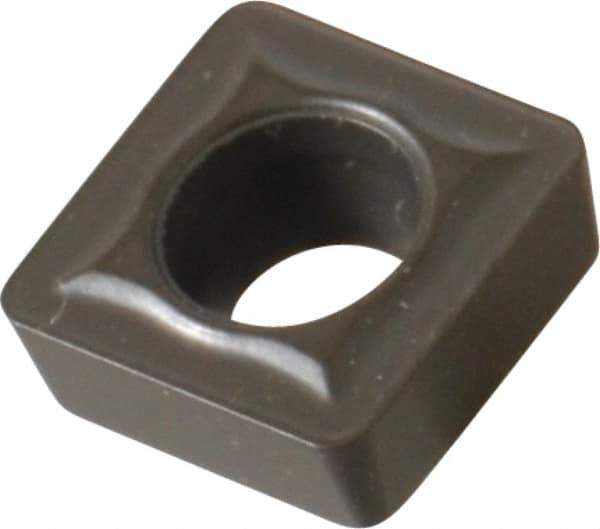

Seco - SCGX070308 P2 Grade DP2000 Carbide Indexable Drill Insert - TiCN/Al2O3 Finish, Square, 5/16" Inscribed Circle
Item #: 87942496
Brand: Seco
Model #: 34798
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCGX |
| Insert Size | 070308 |
| Material | Carbide |
| Material Grade | C6 |
| Manufacturer's Grade | DP2000 |
| Inscribed Circle (mm) | 7.94 |
| Inscribed Circle (Decimal Inch) | 0.3120 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Square |
| Relief Angle | 7 |
| Included Angle | 90 |
| Coating | TiCN/Al2O3 |
| Coating Process | Duratomic |
| Chipbreaker | P2 |
