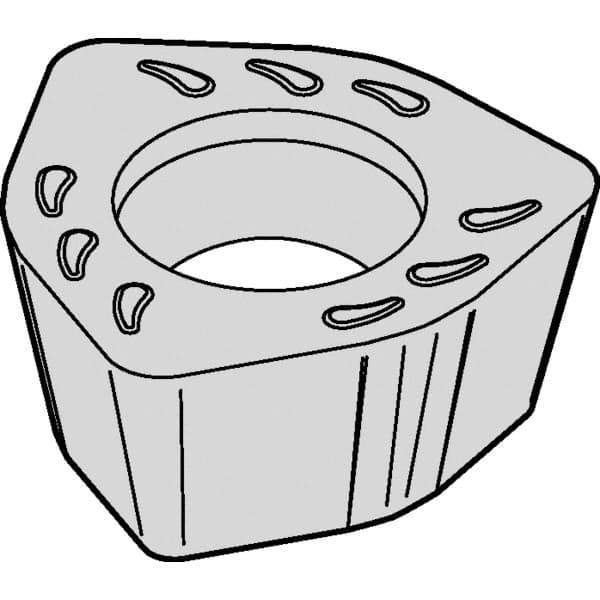

Kennametal - WPMT080615 Grade KC725M Carbide Milling Insert - TiN/TiCN/TiN Finish, 1/4" Thick, 0.5199" Inscribed Circle, 1.5mm Corner Radius
Item #: 87888350
Brand: Kennametal
Model #: 3578626
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WPMT |
| Insert Size | 080615 |
| Material | Carbide |
| Manufacturer's Grade | KC725M |
| Coating | TiN/TiCN/TiN |
| Length (Decimal Inch) | 0.5835 |
| Inscribed Circle (Decimal Inch) | 0.5199 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Hole Diameter (mm) | 5.56 |
| Hole Diameter (Decimal Inch) | 0.2189 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 80 |
| Shape | Trigon |
| Insert Hand | Right Hand |
| ISO Number | WPMT080615ZZSRHN |
