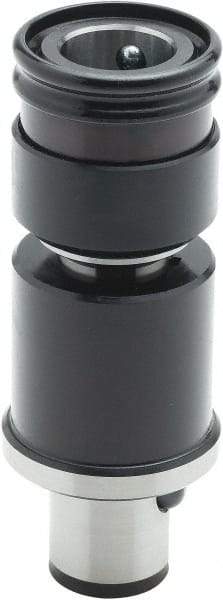

Parlec - PC6 Modular Connection Tension & Compression Tapping Chuck - #6 to 1-5/8" Tap Capacity, 5.16" Projection, Size 770 Adapter, Quick Change, Through Coolant
Item #: 87697777
Brand: Parlec
Model #: PC6-77TA5C
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Modular connections allow for single tap chucks to accept various tap shank diameters without changing machine tool holding set-ups.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Modular Connection |
| Modular Connection Size | PC6 |
| Minimum Tap Capacity (mm) | M3.5 |
| Minimum Tap Capacity (Inch) | #6 |
| Maximum Tap Capacity (Inch) | 1-5/8 |
| Maximum Tap Capacity (mm) | M36 |
| Projection (Decimal Inch) | 5.1600 |
| Quick Change | Yes |
| Adapter Size | 770 |
| Nose Diameter (Decimal Inch) | 2.3100 |
| Through Coolant | Yes |
