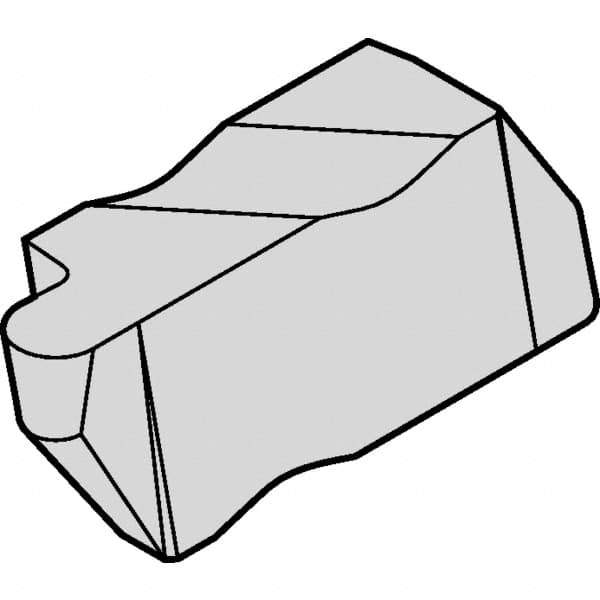

Kennametal - 2M050NR Grade KC5010, 1mm Cutting Width Carbide Grooving Insert - 1.27mm Max Depth of Cut, Left Hand, TiAlN Finish
Item #: 87519724
Brand: Kennametal
Model #: 3387910
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NR |
| Insert Size | 2M050 |
| Material | Carbide |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Maximum Depth of Cut (mm) | 1.27 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | KC5010 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Insert Seat Size | 2 |
| Multi-Use Tool | No |
| Coating Process | PVD |
| Series | Top Notch |
| Rake | Neutral |
| Included Angle | 55 |
