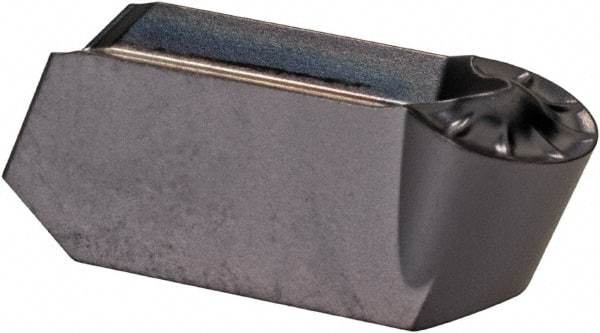

Iscar - 630GIMY Grade IC908, 6mm Cutting Width Carbide Grooving Insert - 3mm Max Depth of Cut, Neutral, 3mm Corner Radius, TiAlN Finish
Item #: 87199931
Brand: Iscar
Model #: 6402805
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIMY |
| Insert Size | 630 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning |
| Corner Radius (mm) | 3.00 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Coating Process | PVD |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
| Overall Width (mm) | 6.00 |
| Overall Width (Decimal Inch) | 0.2362 |
