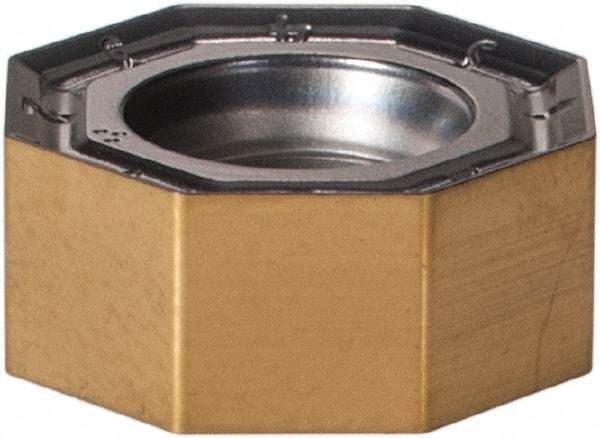

Iscar - ONHU050505 TN Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.205" Thick, 13mm Inscribed Circle, 0.51mm Corner Radius
Item #: 87126454
Brand: Iscar
Model #: 5606391
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONHU |
| Insert Size | 050505 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5120 |
| Thickness (Decimal Inch) | 0.2050 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Corner Radius (mm) | 0.51 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Chipbreaker | TN |
| Maximum Depth of Cut (mm) | 3.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Manufacturers Catalog Number | ONHU 050505-TN |
