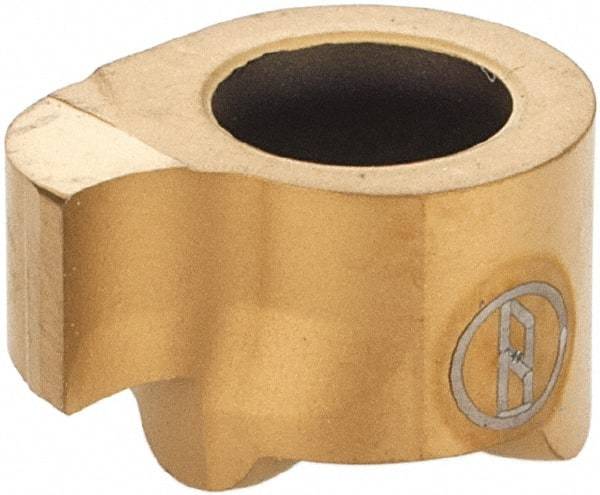

Iscar - 11400020GIQR Grade IC528, 4mm Cutting Width Carbide Grooving Insert - 1.6mm Max Depth of Cut, 0.2mm Corner Radius, TiCN/TiN Finish
Item #: 87072161
Brand: Iscar
Model #: 6403924
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIQR |
| Insert Size | 11400020 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 1.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Cutting Direction | Right Hand |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Overall Length (mm) | 10.68 |
| Overall Length (Decimal Inch) | 0.4205 |
| Series | ChamGroove |
| Manufacturers Catalog Number | GIQR 11-4.00-0.20 |
