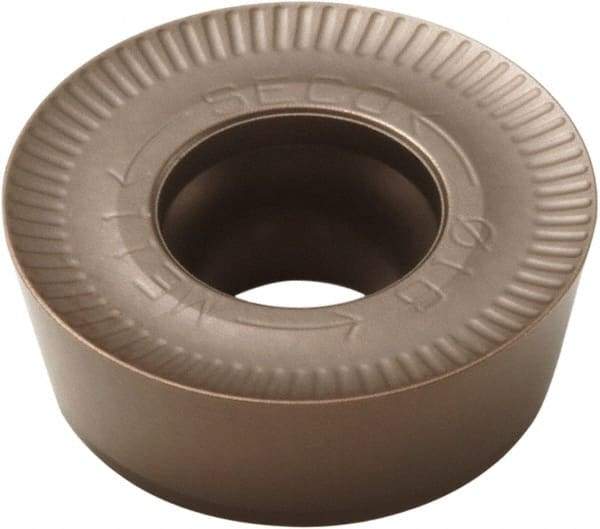

Seco - RPHT1605M0 ME11 Grade T350M Carbide Milling Insert - TiCN/Al2O3 Finish, 0.219" Thick, 0.63" Inscribed Circle
Item #: 86894755
Brand: Seco
Model #: 20433
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RPHT |
| Insert Size | 1605M0 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | T350M |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (Decimal Inch) | 0.6300 |
| Thickness (Decimal Inch) | 0.2190 |
| Relief Angle | 11.000 |
| Rake Angle | 21 |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | ME11 |
| ISO Number | RPHT1605M0T-ME11 |
